Sheet Forming Machine

S.NO	MODEL	CAPACITY	MAX THICKNESS	MAXIMUM LENGTH
1	AMADA HRB 1003	100T – 7 axis	8MM	1000MM

Laser Cutting Machine

S.NO	MODEL	CAPACITY	THICKNESS	BED LENGTH	GRADE
1	Bodor	2KW	1 to 16mm	1500x3000mm	MS
2	Bodor	12 KW	1 to 40mm	1500x3000mm	MS

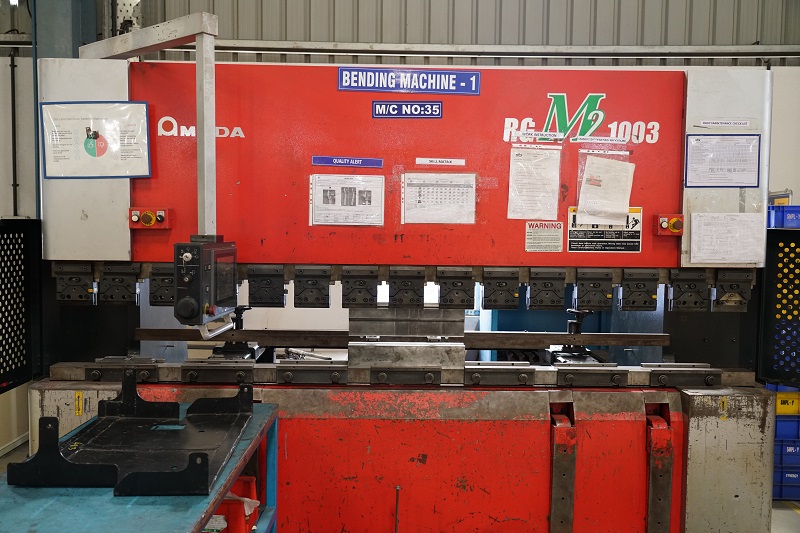

CNC Press Brake RG

S.NO	MODEL	CAPACITY	THICKNESS	MAXIMUM BENDING LENGTH
1	CNC Press Brake RG M2-1003	100KN	5MM	3M

AMC Tan 406H

S.NO	MODEL	CAPACITY	MAX THICKNESS	MAX LENGTH
1	AMC Tan 406H	400 KN	8MM	1250x2500mm

Tube Bending & End Forming Machine

CNC Tube bender with capacity up to 114 * 6mm thickness & maximum bend radius of 500mm.

Technical Specification

Pipe/Tube Bending Machine

S.NO	MODEL NO.	UNIT	30 NC-X	65 NC-X	65 CNC-X	80 NC-X	100 NC-X	100 CNC-X
1.	MAKE		ELECTRO PNEUMATICS
2.	MAX.TUBE OD X THK	MM	D 32 * 2	D 65 * 4	D 76 * 4	D 90 * 2	D 114 * 6	D 114 * 4
3.	MAX.TUBE OD	MM	D 12	D 12	D 25	D 32	D 50	D 50
4.	MAX.BEN RADIUS	MM	D 120	D 300	D 300	D 300	D 500	D 500
5.	MAX.BEN RADIUS	in terms of D	1.5D	1.5D	1.5D	1.5D	1.5D	1.5D
6.	BEND ANGLE RANGE	deg	5-180	5-180	5-180	5-180	5-180	5-180
7.	LENGHT OVER MANDREL	M	2	2	2	2	2	4

Hydraulic Shearing & CNC Press Brake

S.NO	MODEL	CAPACITY	MAX THICKNESS	MAXIMUM LENGTH
1	Hydraulic Shearing Machine	–	0.5 -8 MM	5.1 M
2	CNC Press Brake	200 TON	8 MM	6.2 M

AMADA & AMC Turret Punching Machine

AMADA’s AE 2510 NT and AMC TAN 406H is an automated punching system that features a 20 ton with 6 mm thickness capacity and 40 ton with 8 mm thick capacity turret punch equipped with a high capacity tool rack

AMADA’s AE 2510 NT and AMC TAN 406H series is packed with wide variety of standard features to ensure that parts are produced faster, easier and more economically.

Turret Punching Matrix Range

AMADA AE2510 NT – PUNCHING MATRIX

S.NO	THICKNESS	MAXIMUM DIAMETER	S.NO.	THICKNESS	MAXIMUM DIAMETER
1.	0.8	50	6	2.5	50
2.	1	50	7	3	40
3.	1.2	50	8	4	30
4.	1.5	50	9	5	30
5.	2	50	10	6	30

AMC TAN 406H – PUNCHING MATRIX

S.NO	THICKNESS	MAXIMUM DIAMETER
1.	3.8	50
2.	4.8	50
3.	5.8	50
4.	7.8	50

Press Shop

We are having variant types of presses for manufacturing of press components with maximum capacity of 500 Tons.

S.NO	TYPE	TONNAGE	QTY
1.	PNEUMATIC PRESS	63 T	1
2.	HYDRAULIC PRESS	65 T	1
3.	MECHANICAL PRESS	30 T	4
4.	MECHANICAL PRESS	50 T	2
5.	MECHANICAL PRESS	75 T	2
6.	MECHANICAL PRESS	80 T	3
7.	MECHANICAL PRESS	100 T	2
8.	MECHANICAL PRESS	160 T	2
9.	MECHANICAL PRESS	200 T	2
10.	MECHANICAL PRESS	300 T	1
11.	PNEUMATIC PRESS	500 T	1
